Product family: Products for and to support cooking and food processing
Country of origin: IT
SKU Product code: FAM_FFDU4-10
Weight: 150 kg

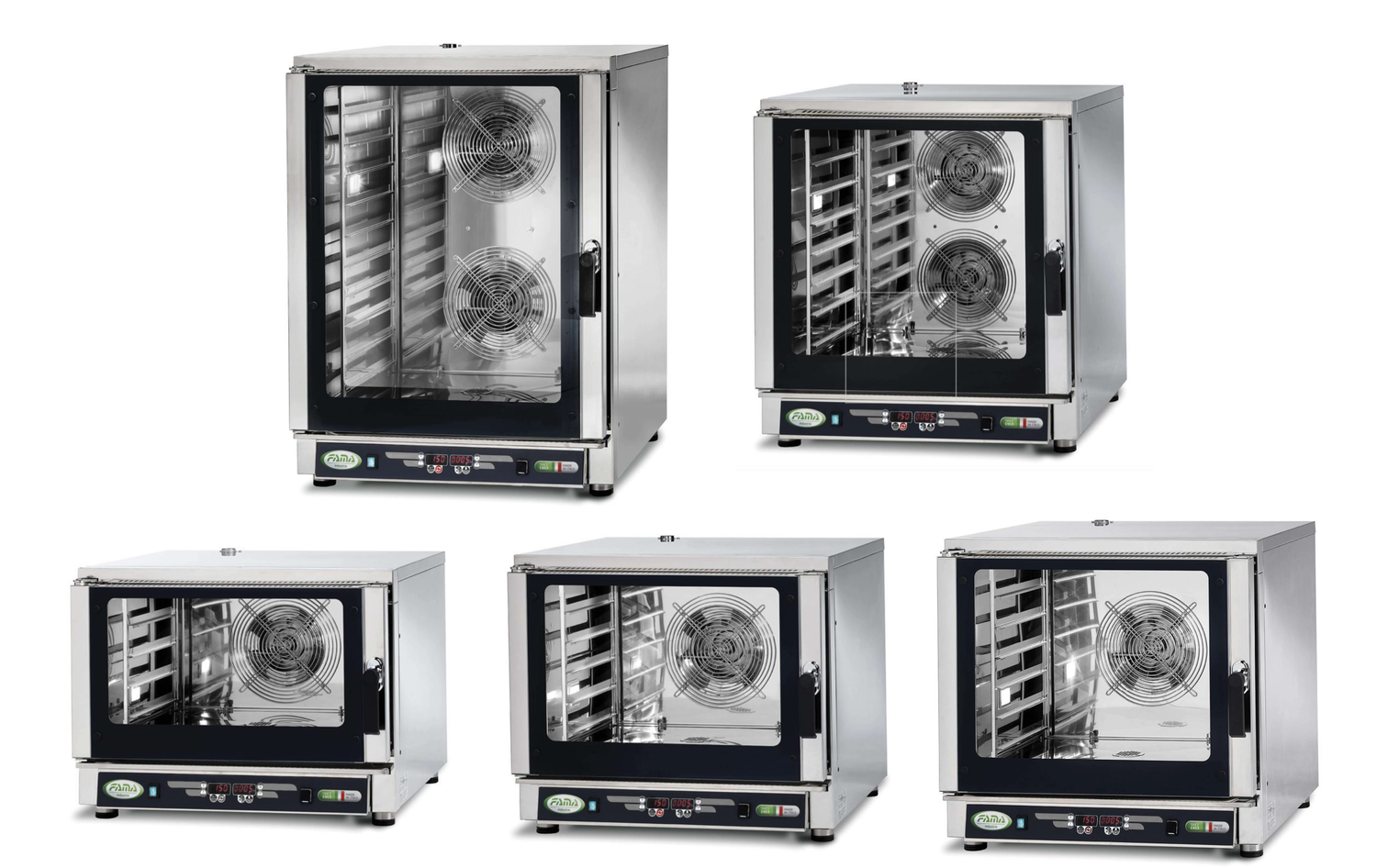

Digital convection ovens with water injection for professional use with:
Digital control panel: double display, memory of 9 cooking programs, connection for core probe, preheating, cooking chamber temperature, cooking times, core temperature, percentage of water injected into the cooking chamber, switching on and off the internal lights
Power supply (Volts/Hz) 230/50
Removable door for easy maintenance
Cold door with double glass, can be opened to maximize cleaning operations
Handle with safety opening system
Door opening with anti-puff safety and fan deactivation
Door and oven condensation water drainage system
Stainless steel cooking chamber with rounded corners
Seals with interlocking fixing system
Non-slip feet
CE standards
Made in Italy
Technical characteristics
Model FFDU 4
Power (Kwatt/Hp) 5.45
Chamber capacity (min) 4 trays or grids GN 1/1 or 600×400 mm
Tray distance (mm) 80
Temperature (°C) 0-280
Single-phase net weight (kg) 79.0
Single-phase gross weight (Kg) 101.0
Packaging dimensions (mm) W. 880 D. 955 H. 820
Dimensions (mm) W. 840 D. 910 H. 670
Model FFDU 5
Power (Kwatt/Hp) 6.45
Chamber capacity (min) 5 trays or grids GN 1/1 or 600×400 mm
Tray distance (mm) 80
Temperature (°C) 0-280
Single-phase net weight (kg) 87.0
Single-phase gross weight (Kg) 109.0
Dimensions packaging (mm) W 880 D 955 H 820
Dimensions (mm) W 840 D 910 H 670
Model FFDU 6
Power (Kwatt/Hp) 7.65
Chamber capacity (min) 6 trays or GN 1/1 or 600×400 mm grids
Tray distance (mm) 80
Temperature (°C) 0-280
Single-phase net weight (kg) 91.0
Single-phase gross weight (Kg) 114.0
Packaging dimensions (mm) W 880 D 955 H 980
Dimensions (mm) W 840 D 910 H 830
Model FFDU 7
Power (Kwatt/Hp) 10.70
Chamber capacity (min) 7 trays or grids GN 1/1 or 600×400 mm
Tray distance (mm) 80
Temperature (°C) 0-280
Single-phase net weight (kg) 106.0
Single-phase gross weight (Kg) 129.0
Packaging dimensions (mm) W. 880 D. 955 H. 1,080
Dimensions (mm) W. 840 D. 910 H. 930
Model FFDU 10
Power (Kwatt/Hp) 12.70
Chamber capacity (min) 10 trays or grids GN 1/1 or 600×400 mm
