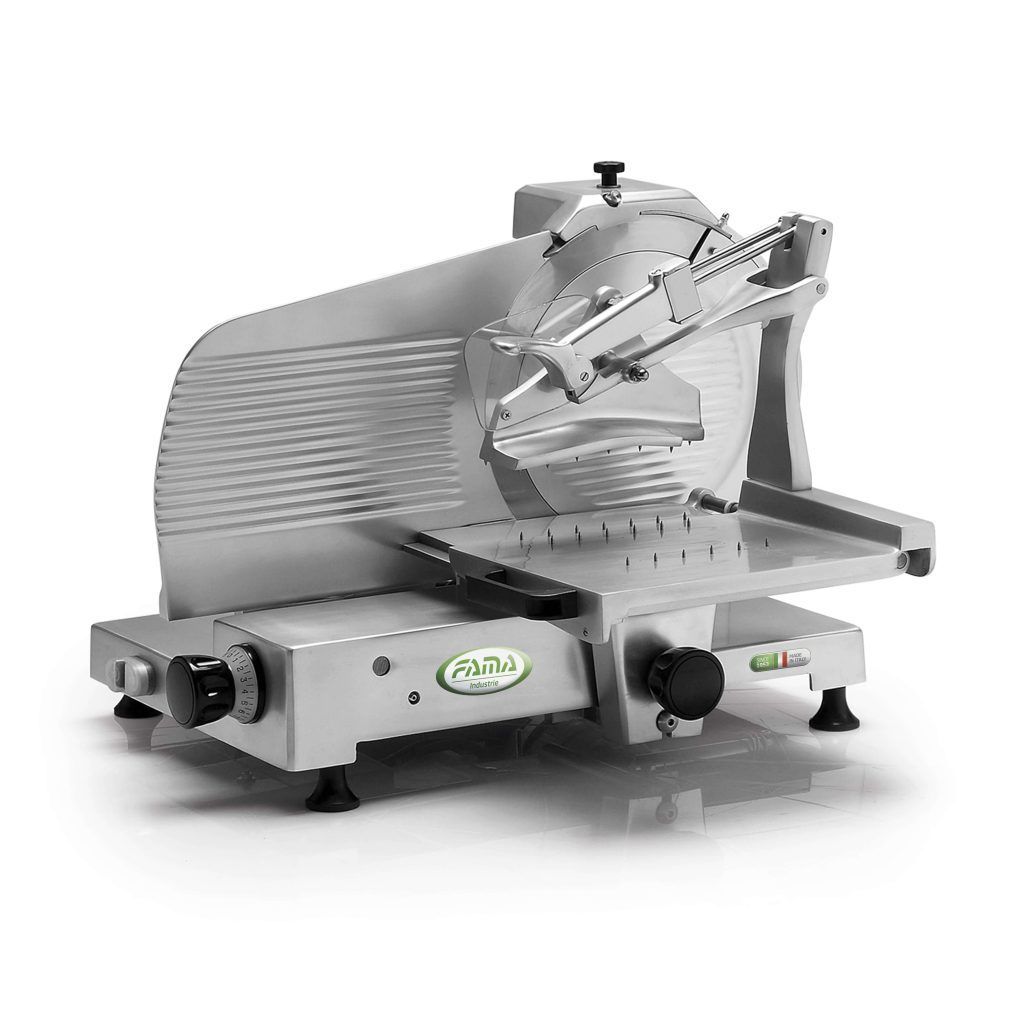

Vertical slicer from the Luxury line, created for professional use and excellent for home use. It is built in anodized aluminum alloy casting, the motor is asynchronous ventilated, the blade is forged in tempered steel and is cared for in detail as well as being easy to clean. It is equipped with:
Blade protection ring
Carriage lock
Self-lubricating carriage bushings
Sliding plate for cold cuts with swan arm
Polyester belt transmission
Digital switch
Built-in sharpener
Made in Italy
Technical characteristics of the individual models.
Model FAM 300 LUX V
Power supply (Volt/Hz) 230 / 50 60
Power (Kwatt/Hp) 0.50 (0.67)
Blade (mm) ø 300
Blade revolutions per minute (RPM) 280
Cutting capacity (mm) 260x220
Cutting thickness (mm) 0÷16
Slicer support base (mm) 530x420
Single-phase net weight (kg) 37.0
Single-phase gross weight (Kg) 40.0
Dimensions (mm) W. 710 D. 550 H. 610
Packaging dimensions (mm) W. 580 D. 710 H. 630
Available:
CE standard (Model FAM 300 LUX V CE FA304)
Without CE standard for non-European countries (Model FAM 300 LUX V FA304E)
Model FAM 330 LUX V
Power supply (Volts/Hz) 230 / 50 60 and 230/400V three-phase
Power (Kwatt/Hp) 0.38 (0.50)
Blade (mm) ø 330
Carriage stroke (mm) 340
Cutting capacity (mm) 300x230
Cutting thickness (mm) 0÷16
Blade revolutions per minute (RPM) 280
Digital switch
24 volt board
Slicer support base (mm) 605x445
Net weight single and three-phase (kg) 40.0
Gross weight single and three-phase (Kg) 45.0
Dimensions (mm) W. 690 D. 620 H. 520
Packaging dimensions (mm) W. 800 D. 700 H. 620
Available:
CE standard single phase (Model FAM 330 LUX V CE FA331)
CE standard three phase (Model FAM 330 LUX V CE FA330)
Model FAM 350 LUX V
Power supply (Volt/Hz) 230 / 50 60 and 230/400V three phase
Power (Kwatt/Hp) 0.38 (0.50)
Blade (mm) ø 390
Carriage stroke (mm) 340
Cutting capacity (mm) 310x240
Cutting thickness (mm) 0÷16
Blade revolutions per minute (RPM) 260
Switch digital
24 volt card
Slicer support base (mm) 605x445
Net weight single and three-phase (kg) 45.0
Gross weight single and three-phase (Kg) 50.0
Dimensions (mm) W. 710 D. 640 H. 540
Packaging dimensions (mm) W. 800 D. 700 H. 620
Available:
CE standard single-phase (Model FAM 350 LUX V CE FA351)
CE standard three-phase (Model FAM 350 LUX V CE FA350)
Model FAM 370 LUX V
Power supply (Volt/Hz) 230 / 50 60 and 230/400V three-phase
Power (Kwatt/Hp) 0.38 (0.50)
Blade (mm) ø 370
Carriage stroke (mm) 420
Cutting capacity (mm) 330x260
Cutting thickness (mm) 0÷16
Blade revolutions per minute (RPM) 260
Digital switch
24 volt board
Slicer support base (mm) 610x460
Single and three-phase net weight (kg) 47.0
Single and three-phase gross weight (Kg) 51.0
Dimensions (mm) W. 770 D. 650 H. 580
Packaging dimensions (mm) W. 800 D. 700 H. 620
Available:
Single-phase CE standard (Model FAM 370 LUX V CE FA371)
Three-phase CE standard (Model FAM 370 LUX V CE FA370)
