Product family: Products for and to support cooking and food processing
Country of origin: IT
SKU Product code: FAM_B.7-8-9
Weight: 250 kg

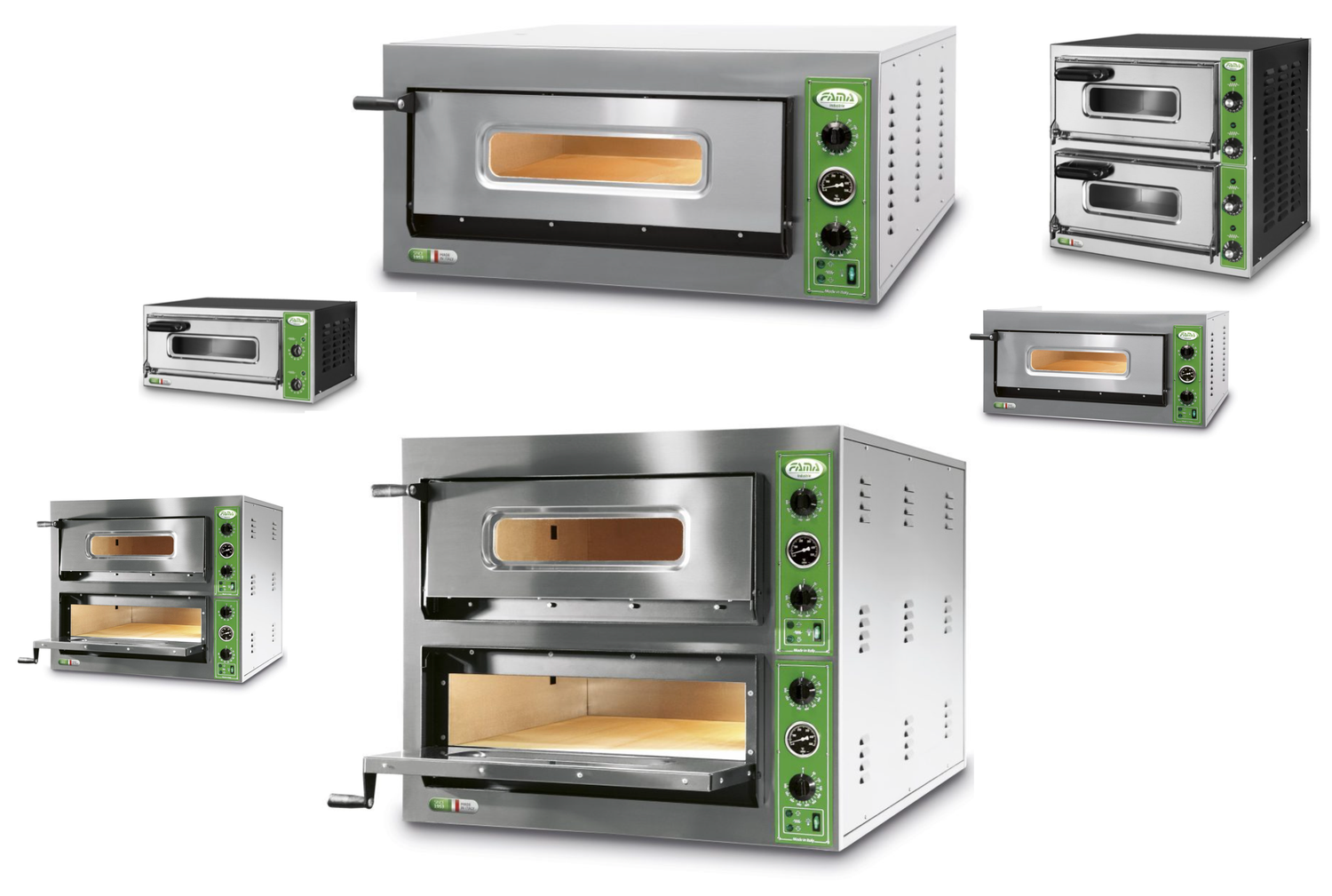

Electric pizza oven for professional use available with 230 V (single phase) or 400 V (three phase) power supply with AISI 304 stainless steel structure. The oven floor is made of refractory material, the glass door and the heating elements are armoured. The oven is equipped with
Power supply (Volts/Hz) 230/50 - 230.400/50
Timer on the control panel
NO Internal lighting
Temperature from 50°C to 500°C
Thermostats for temperature control
Ceramic fibre insulation
Thermometer
CE standards
Made in Italy
Technical characteristics
Model B 7
Power (Kwatt/Hp) 4 (5.35)
Internal dimensions 500x510 h. 110
Thermostats 2
Pizza capacity 1
Pizza diameter ø50 cm
Net weight single and three phase (kg) 45.0
Gross weight single and three phase (Kg) 51.0
Packaging dimensions (mm) W. 800 D. 730 H. 450
Dimensions (mm) W. 715 D. 570 H. 310
Model B 7 + 7
Power (Kwatt/Hp) 7 (10.70)
Internal dimensions 500x510 h. 110 x 2
Thermostats 4
Pizza capacity 1 + 1
Pizza diameter ø50 cm
Net weight single and three phase (kg) 79.0
Gross weight single and three phase (Kg) 85.0
Packaging dimensions (mm) W. 800 D. 730 H. 900
Dimensions (mm) W. 715 D. 570 H. 550
Model B 8
Power (Kwatt/Hp) 6.0 (8.0)
Internal dimensions 720x720 h. 140
Thermostats 2
Pizza capacity 4
Pizza diameter ø36 cm
Net weight single and three phase (kg) 95.0
Gross weight single and three phase (Kg) 109.0
Packaging dimensions (mm) W. 1,090 D. 1,040 H. 580
Dimensions (mm) W. 1,010 D. 850 H. 420
Model B 8 + 8
Power (Kwatt/Hp) 12.0 (16.0)
Internal dimensions 720x720 h. 140 x 2
Thermostats 4
Pizza capacity 4 + 4
Pizza diameter ø36 cm
Net weight single and three phase (kg) 165.0
Gross weight single and three phase (Kg) 180.0
Packaging dimensions (mm) W. 1,090 D. 1,040 H. 930
Dimensions (mm) W. 1,010 D. 850 H. 750
Model B 9
Power (Kwatt/Hp) 9.0 (12.0)
Internal dimensions 720x1,080 h. 140
Thermostats 2
Pizza capacity 6
Pizza diameter ø36 cm
Net weight single and three phase (kg) 137.0
Gross weight single and three phase (Kg) 153.0
Packaging dimensions (mm) W. 1,090 D. 1,400 H. 580
Dimensions (mm) W. 1,010 D. 1,210 H. 420
Model B 9 + 9
Power (Kwatt/Hp) 18.0 (24.0)
Internal dimensions 720x1,080 h. 140 x 2
Thermostats 4
Pizza capacity 6 + 6
Pizza diameter ø36 cm
Net weight single and three phase (kg) 232.0
Gross weight single and three phase (Kg) 250.0
Packaging dimensions (mm) W. 1,090 D. 1,400 H. 930
