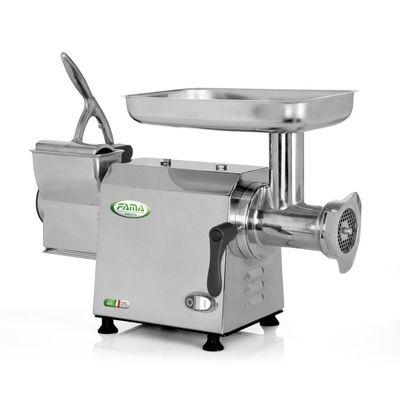

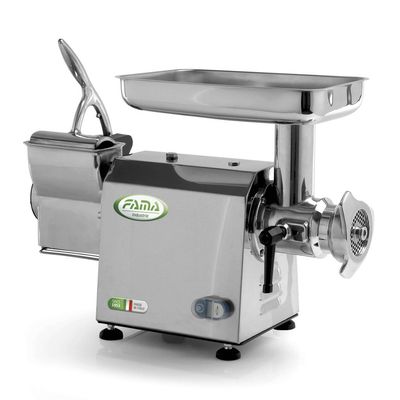

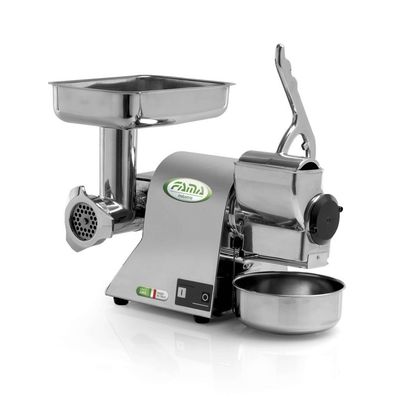

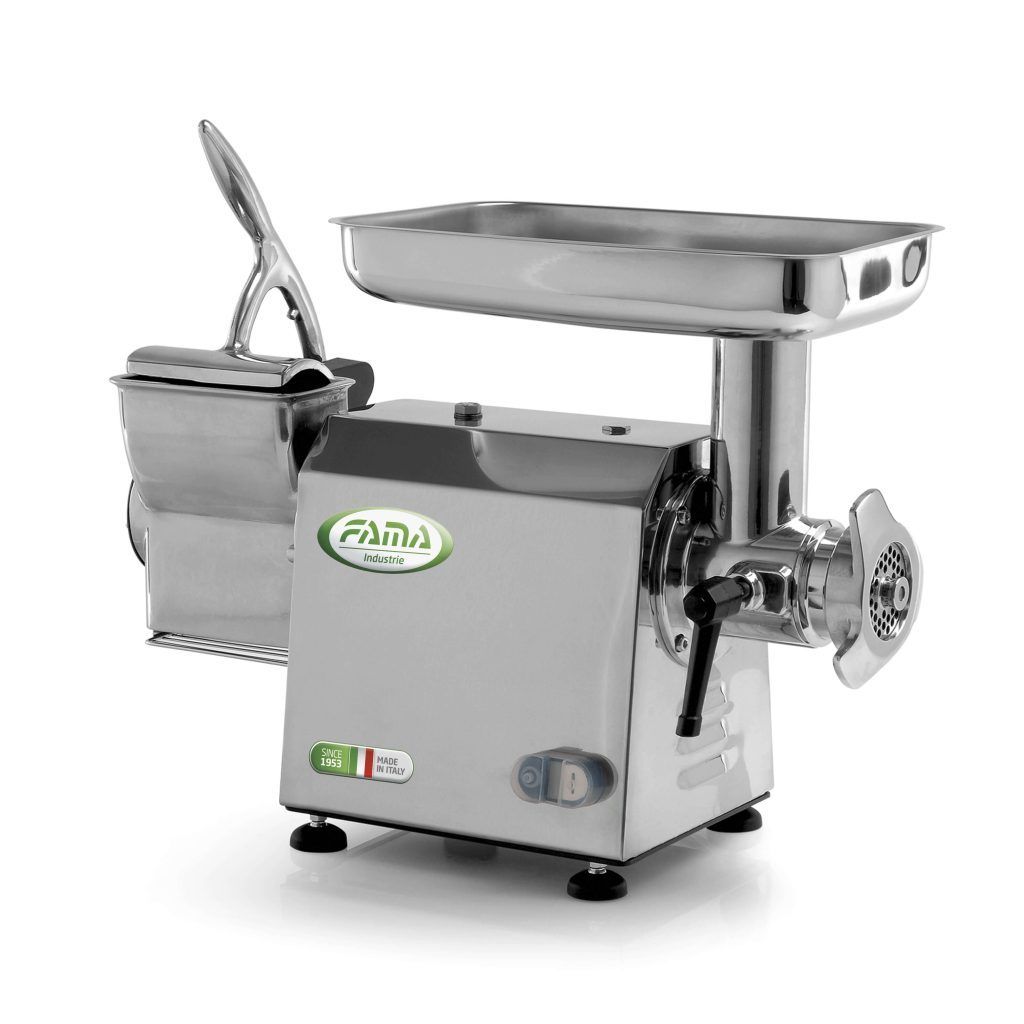

Stainless steel meat grinder and grater for professional use, constructed from die-cast aluminum alloy and AISI 304 stainless steel sheet on the motor body. The hardened steel helical gears are immersed in an oil bath. The domestically produced asynchronous motor features a thermal protection.
Details:
Meat mincing unit: Cast iron / Aluminum / Stainless steel
Self-sharpening stainless steel dies as standard
Stainless steel hopper and collection plate
Steel roller with electroless nickel plating
AISI 304 stainless steel roller available
Stainless steel cheese bowl
Stainless steel grater outlet protection grille
Grater protection microswitch
ABS pestle
24-volt controls
Reverse gear (optional)
CE standards
Made in Italy
Technical specifications:
Power supply (Volts/Hz):
Standard with 230/400/50 three-phase motor
Optional with 230/50 single-phase motor
Power (Kwatt/Hp): 0.75 (1.00)
Meat mincer auger revolutions (RPM): 200
Grater revolutions (RPM): 1400
Meat mincer hourly production (kg): 200
Hourly grater production (kg): 50
Outlet opening (mm): ø 70
Meat insertion opening (mm): ø 52
Supplied plate (mm): ø 6
Grater opening: 140x80 mm
Mincing units: stainless steel / aluminum / cast iron
